Keyde S110 Wireless Thru-Axle Non Boost Rear Motor Kit 36V
Low stock

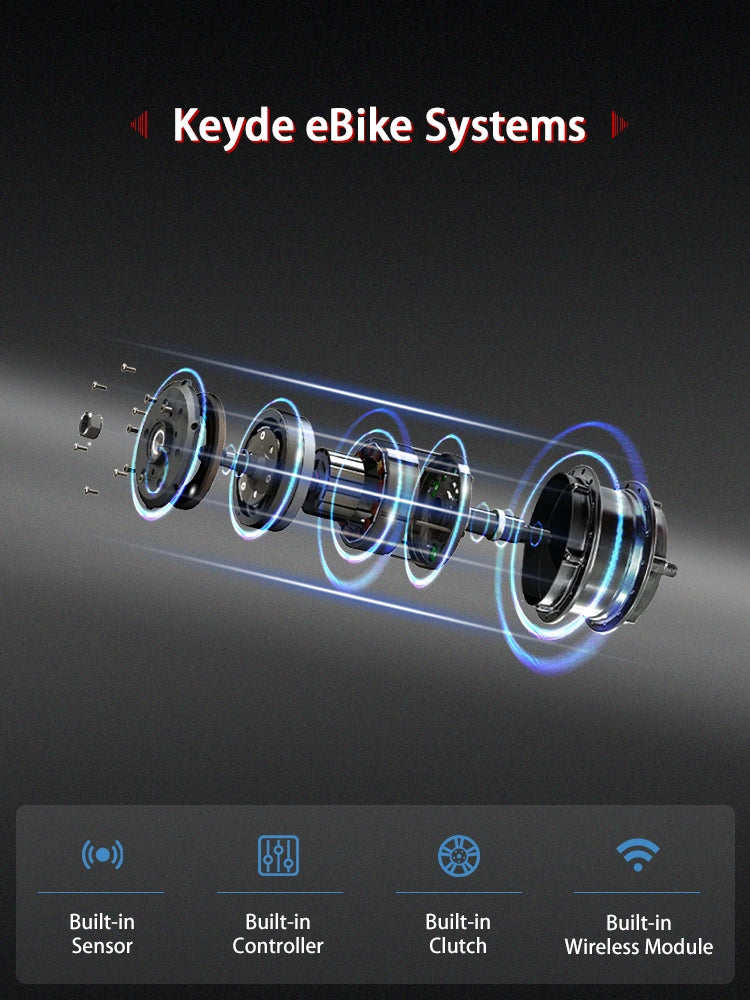

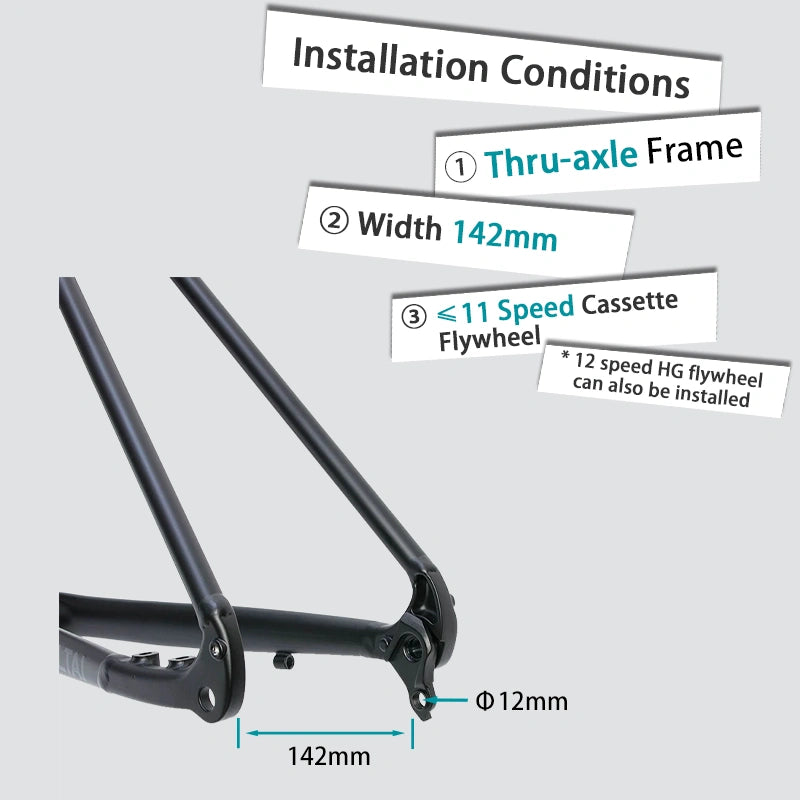

Inclusions: Motor+Controller, Display, Battery Connector (XT60) The S110 thru-axle rear wheel hub motor has the following advantages: 1. The thru-axle motor based on the S110 design can be used in most 142x12 or 148x12 frames, with the advantages of light weight, small size, no noise, and less wiring harness. 2. The working efficiency is as high as 89%, which effectively reduces heat loss and increases the cruising range. 3. The maximum power can reach 500W, and the torque exceeds 35N?m, which is easy to cross-country and climb. 4. It runs quietly, and the sound of the motor working can hardly be heard when riding outdoors. 5. Supports optional Bluetooth communication, no cables, wireless control

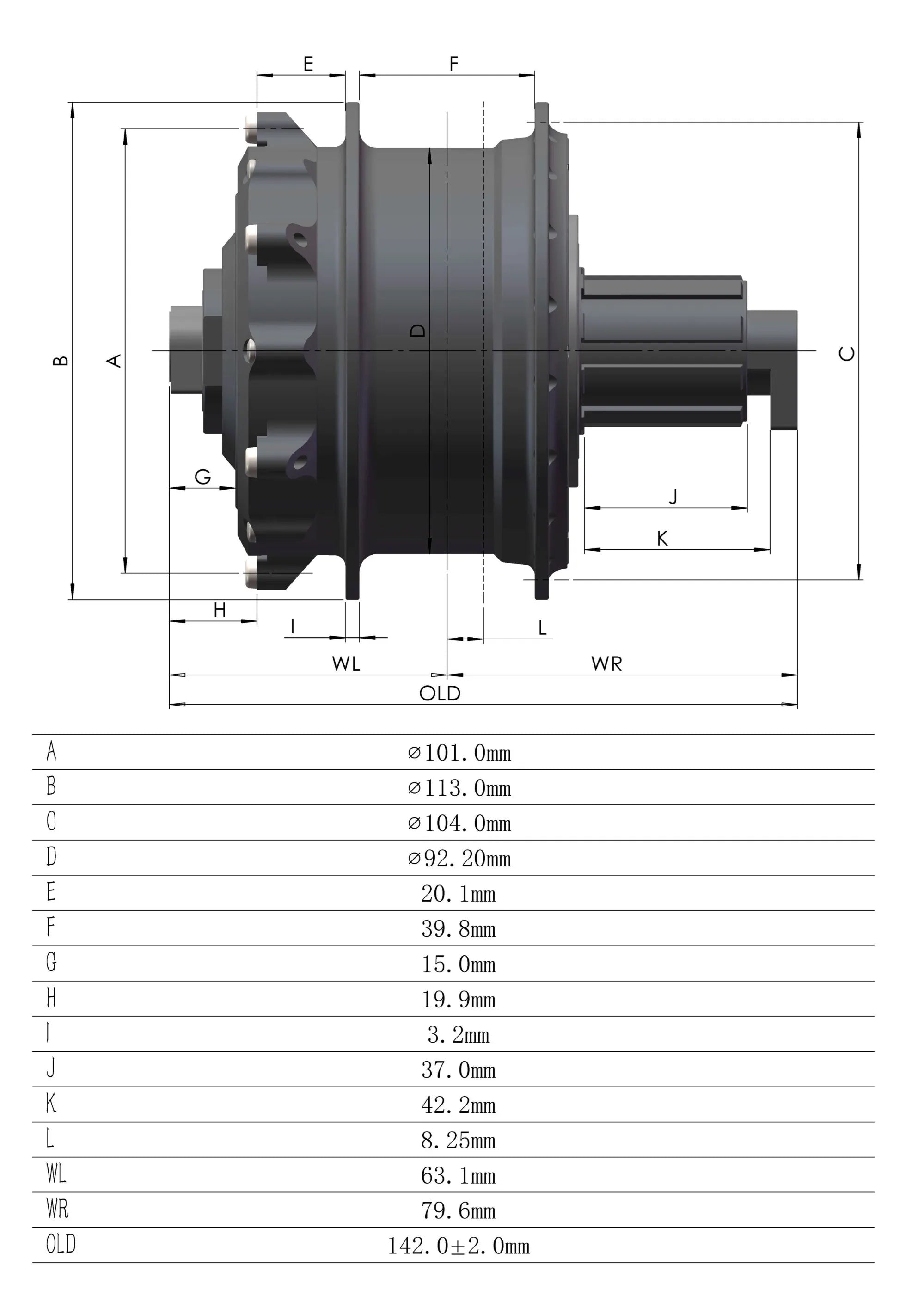

Identification & Physical Dimensions
- Item No.: S110SWXRDC36 / S110SWXRC36
- Diameter: 113mm ? 1mm
- Width: 142 ? 2mm or 148 ? 2mm
- Applicable Wheel Diameter: 14??9 inch
- Weight: 2.3 kg
- Color: Black / Silver
Mechanical Specifications
- Brake Types: Disc brake / V brake
- Outlet Position: Under the shaft on the right side
- Free-wheel Types: Cassette
- Gears: 7??2s
- Spoke Number: 20H, 24H, 28H, 32H, 36H
- Spoke Types: 13g / 14g
Electrical & Control
- Controller: Internal
- Sensor: Internal
- Rated Power: 250W
- Max. Power: 500W
- Rated Voltage: 36V
- Rated Input Current: 7.8A
Performance & Environmental
- Max. Torque: 35 N?m
- Reduction Ratio: 1 : 13.5
- Grade-ability: > 20%
- Efficiency: > 89%
- Revolution: 160??60 RPM
- Noise: < 50dB
- Operation Temperature: -20?C to 45?C
- Storage Temperature: -20?C to 45?C
- Waterproof & Dust-proof: IP65
